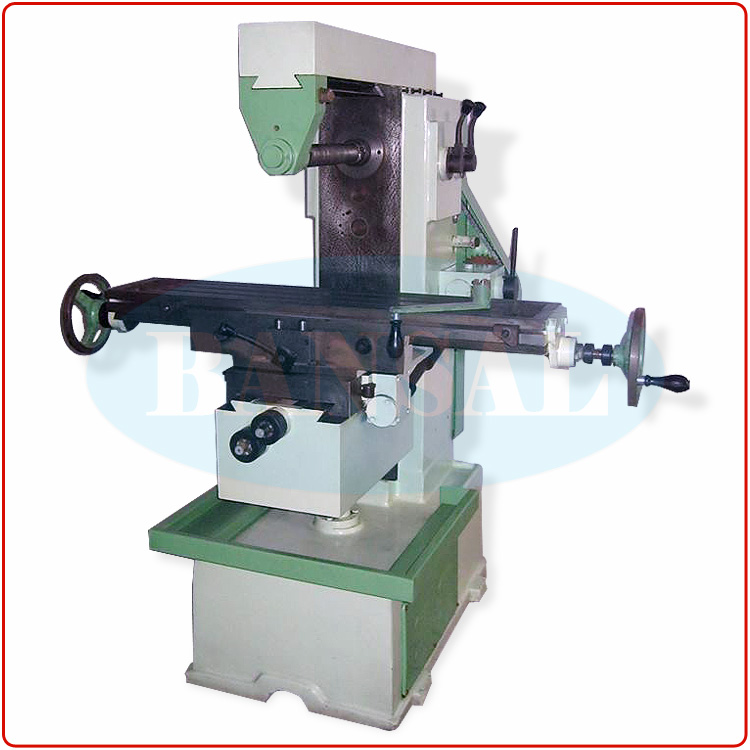

TABLE
Sr. No.	Table	M-1	M-1^1/2	M-2	M-3
1	Table width & lenght	230 x 1050	250 x 1070	280 x 1270	310 x 1450
2	T-slot	3	3	3	3
3	Distance between T Slots	52 MM	56 MM	67 MM	78 MM
3	T Slots Size	16 MM	16 MM	16 MM	16 MM
AXES TRAVEL
A	Table Travel Longiinal	540 MM	560 MM	660 MM	735 MM
B	Cross Travel	190 MM	230 MM	255 MM	310 MM
C	Knee Travel	350 MM	400 MM	560 MM	600 MM
FEEDS
A	Table Feeds	3	3	3	3
MAIN SPINDLE
A	Spindle taper	ISO 40/45	ISO 40/45	ISO 40/45	ISO 40/45
B	Spindle speeds RPM	6 Speeds 50-700	6 Speeds 50-700	9 Speeds 40-1050	9 Speeds 40-1050
C	Cutting airbor	25.4 MM	25.4 MM	32 MM	32 MM
POWER
A	Motor	2 HP 960 RPM	2 HP 960 RPM	5 HP 1440 RPM	5 HP 1440 RPM
B	Coolant pump	0.10 HP	0.10 HP	0.10 HP	0.10 HP
SPACE REQUIRED
A	Lenght	980 MM	1000 MM	1500 MM	1600 MM
B	Width	580 MM	600 MM	900 MM	1300 MM
C	Height	1600 MM	1650 MM	1850 MM	2100 MM
D	Wight	1000 kg	1400 kg	2200 kg	3200 kg
NOTE : All the dimension are approximate

1. Set of Change Gears (Feed/Differential/Index)
2. Hob Arbor
3. Work supports
4. Coolant System
5. Work Arbor
6. Machine lamp 24V
